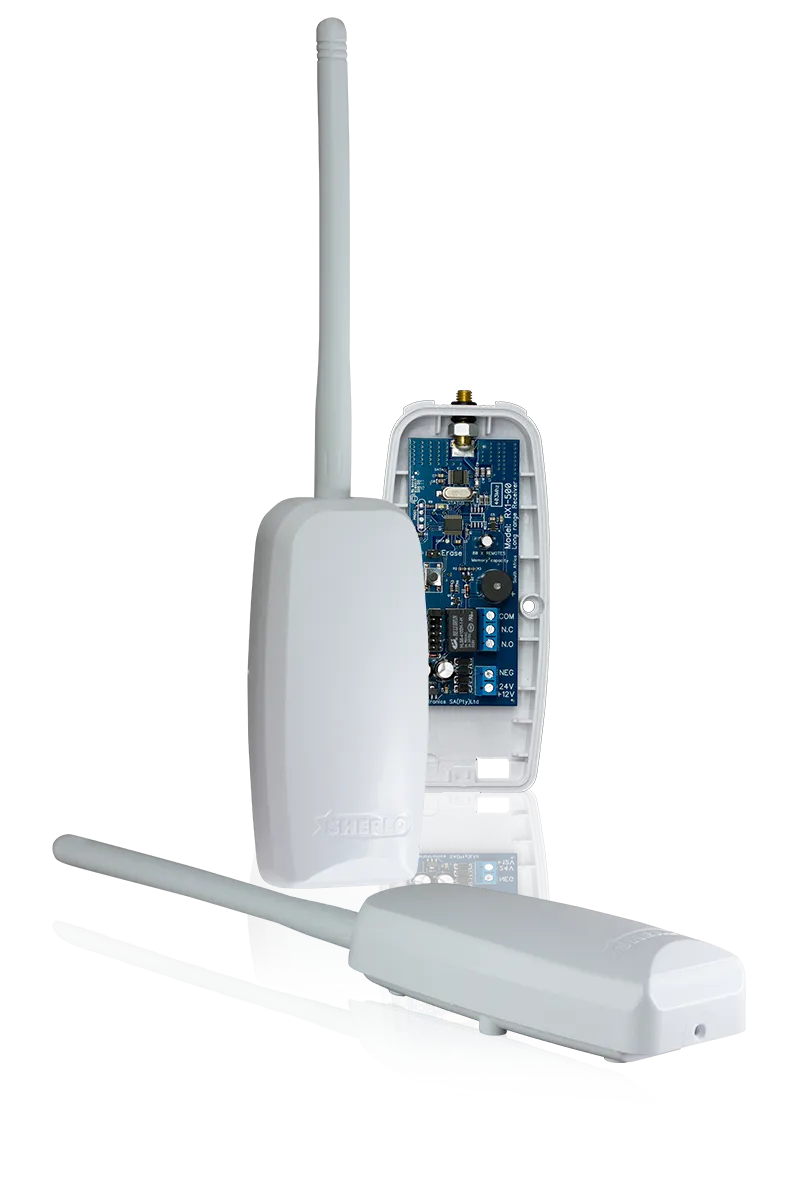

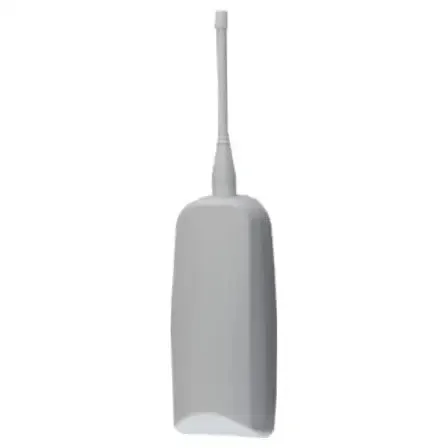

Sherlo long range 500m receiver 4 channel

The unit is weatherproof and is supplied with a rubber duck antenna.

This product is suitable for larger sized properties needing the ultimate in performance, quality and range.



Encryption : Code-Hopping

Range : 500m (Open air)

Frequency : 403MHz

Voltage Range : 9.8V to 26V AC/DC

Dimensions (LxBxH) : 187 x 104 x 67mm

Gross Weight : 235 grams

Operating Temp : -3°C to 65°C

Input Voltage Range : 12 - 24V

Relay Contact Rating : 1A

Memory Capacity : RX4-500/64 Remotes capacity

Outputs : 4 Dry Relay

Current Draw : 20mA



Features:

Code hopping Encryption

Latch or Momentary

Selectable Momentary times

1 Sec; 3Sec; 1min; 3min; ON/OFF

Buzzer tone

Crystal Controlled /- 100KHz

Frequencies: 403MHz / 433MHz

12 - 24V AC/DC input

Weatherproof housing

APPLICATIONS

Gate & Garage Door Access Control

Panic Activations

Arming / Disarming Alarm systems

Switching On / Off lights

Switching On / Off Generators
